The Fully Collapsible Parking Lift
Meet the Autostacker
With the strength to support up to 6,000 pounds, Autostacker is the perfect parking lift system that doubles as a home car lift and professional stacker.
View Full Specifications
6,000-lb. Lifting Capacity
When you make Autostacker your home parking lift, you get enough storage capacity to lift most cars.
Low-Profile Entry Ramp
Our super-low-profile deck is gently inclined to permit safe, easy clearance for low-stance vehicles.

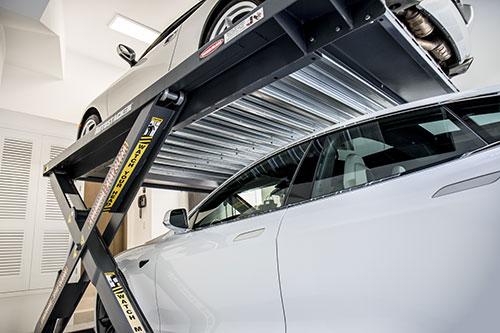

Interlocking Galvanized Platform
A hot-dipped, zinc-coated platform lasts many years and protects the bottom vehicle from fluid drips.
Automatic Safety Locks
All locks engage continuously as the parking lift rises past five heights for versatile positioning.
Low-Profile Loading Platform
Autostacker’s patented loading deck is engineered with a unique, patented incline, so even dropped vehicles and racecars will effortlessly and safely glide onboard. A gentle wheel trough protects virtually all vehicle types from slippage or mishandling.
Autostacker BenefitsAutostacker Locking Heights
Automatic locks are essential to safety. This goes for any car lift type, but new challenges are presented by Autostacker’s fully collapsible frame. We devised five lock stops, placed along the base of each side of the lift. As the scissor arms rise, a lock mechanism glides over the stops. Simply descend the lift until both traveling locks (one on each arm) simultaneously engage the desired lock stop.

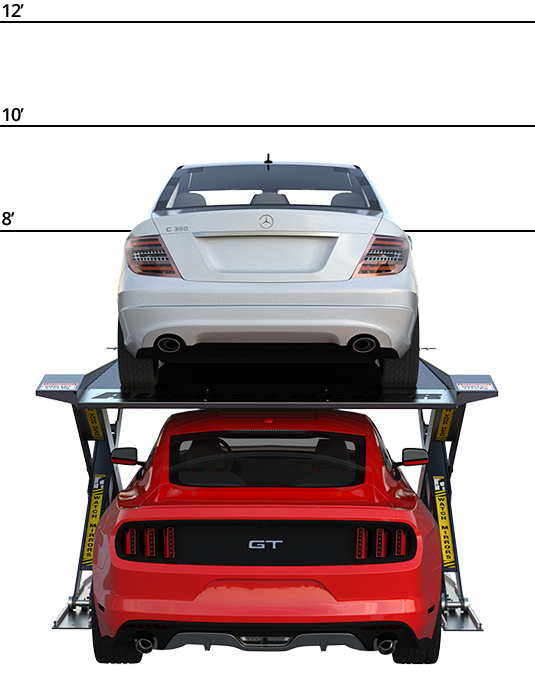

- 1st Locking Position: 52.5" (1,334 mm)
Change Height

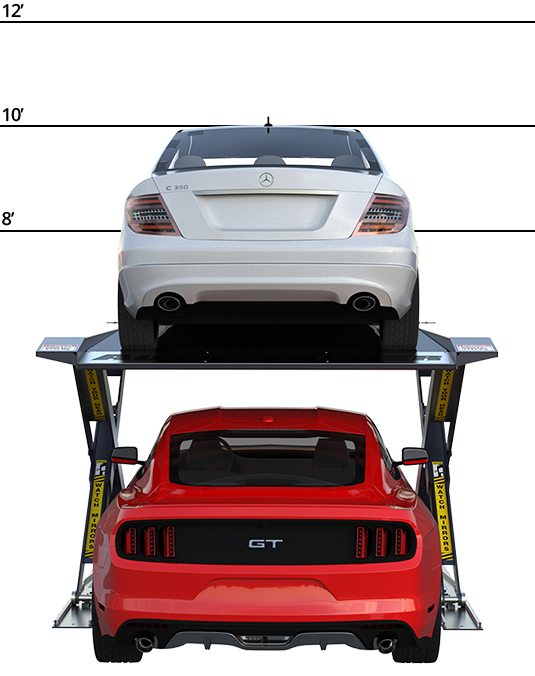

- 2nd Locking Position: 59.75" (1,518 mm)
Change Height
- 3rd Locking Position: 66" (1,676 mm)
Change Height

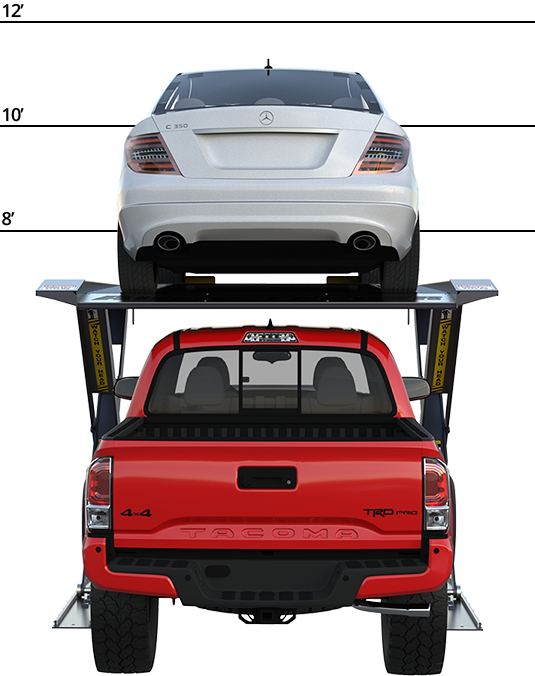

- 4th Locking Position: 71.5" (1,816 mm)
Change Height
- 5th Locking Position: 76.5" (1,943 mm)
Change Height
- 6th Locking Position: 80.25" (2,038 mm)
Change Height
Higher Capacity, Wider Access
Parking lift effortlessly raises vehicles up to 6,000 lbs. The lower parking space is wide and tall enough to fit many light-duty trucks and SUVs . Unique vertical rise eliminates platform tilt, which means more overhead clearance and near-zero radial shift.
Compare SolutionsLifting Capacity
- 6,000 lbs. (2,722 kg)
Dimensions
PL-6SR
- Overall width: 103” (2,616 mm)
- Overall length: 144” (3,658 mm)
- Platform length: 124" (3,150 mm)
- Platform width: 83.75” (2,127 mm)
- Platform height: 13” (330 mm)
- Ramp height (entry): 2” (51 mm)
- Under clearance on top lock: 80” (2,032 mm)
PL-6SRX
- Overall width: 111” (2,815 mm)
- Overall length: 144” (3,658 mm)
- Platform length: 124" (3,150 mm)
- Platform width: 91.75” (2,331mm)
- Platform height: 13” (330 mm)
- Ramp height (entry): 2” (51 mm)
- Under clearance on top lock: 80” (2,032 mm)
Power
Standard - Power Unit Console
- Single unit operation
- Motor horsepower: 2HP
- Power consumption: 1,500 Watts
- Motor voltage: 208-240V, 50/60Hz / 1Ph
- Starting amps: 25A
- Normal running amps: 12-18A
- Operates up to 14 lifts
- Motor horsepower: 7.5 HP
- Power consumption: 5,600 Watts
- Motor voltage: 208-230V/460 VAC, 50/60Hz / 3Ph
- Starting amps 208-230V: 25A
- Normal running amps 208-230V: 12-18A
- Starting amps 460V: 10A
- Normal running amps 460V: 6-9A
Optional - Multi-Unit Power Unit Console
Special voltages available upon request.
Decibels
- 52 db
Shipping Weight
PL-6SR
- 3,350 lbs. (1,530 kg.)
PL-6SRX
- 3,650 lbs. (1,656 kg.)
Six Locking Heights
- First (Lowest Locking Position): 52.5" (1,334 mm)
- Second: 59.75" (1,518 mm)
- Third: 66" (1,676 mm)
- Fourth: 71.5" (1,816 mm)
- Fifth: 76.5" (1,943 mm)
- Sixth (Highest Locking Position): 80.25" (2,038 mm)
Download Ceiling Height Calculator
Speed of Rise
- Standard power unit console: 35 seconds
- Optional multi-unit power unit console: 20 seconds
What's Included
- Right side scissors superstructure
- Left side scissors superstructure
- Front wheel trough
- Ramp assembly with logo plate
- Lower front tie-bar
- Galvanized decking sections
- Front tire stops
- Power unit control console
- Complete parts package including all fasteners, hoses, fittings & anchor bolts
- Installation and operators manual
